Reinforced Clear Food Grade & Water Supply Hose

  • Reinforced Clear Food Grade & Water Supply Hose

Reinforced Clear Food Grade & Water Supply Hose

Item # Product Name
HCL-0250F-00 1/4in Bulk Clear Hose - FDA & NSF/ANSI 51 Materials
HCL-0375F-00 3/8in Bulk Clear Hose - FDA & NSF/ANSI 51 Materials
HCL-0500F-00 1/2in Bulk Clear Hose - FDA & NSF/ANSI 51 Materials
HCL-0625F-00 5/8in Bulk Clear Hose - FDA & NSF/ANSI 51 Materials
HCL-0750F-00 3/4in Bulk Clear Hose - FDA & NSF/ANSI 51 Materials
HCL-1000F-00 1in Bulk Clear Hose - FDA & NSF/ANSI 51 Materials

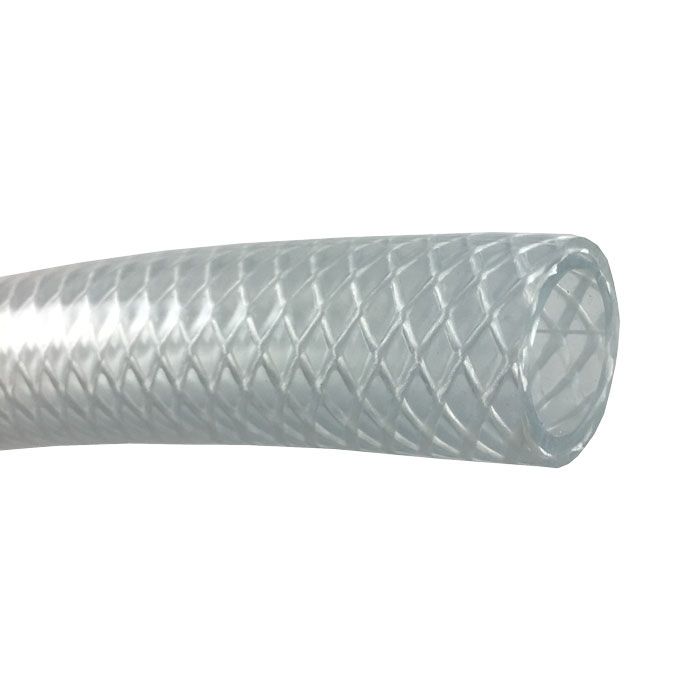

Our crystal clear food grade and water supply hose is made of non-toxic PVC compounds. The construction features a smooth, non-marking cover and is reinforced with high tensile strength textile cord. The smooth interior helps to avoid sediment build-up.


Applications: Suitable for pneumatic lines, air breathing, OEM equipment plumbing, machine tool connections, and a wide variety of food and beverage applications.


OEM Benefits


Customers choose our clear industrial hose for its excellent physical strength and abrasion resistance. Our in-house extrusion capabilities allow us to design a clear hose that will fit your specific requirements. Assemblies are available as a special order.  Our standard lengths include 50, 100, and 300-foot coils.


This hose is also FDA and NSF/ANSI 51 compliant for food and beverage applications.


You can learn more about the product below. Contact our sales team to discuss your specific needs so we may partner with you for the perfect solution.


*For length replace "yy" with 50 or 100 for coils and 00 for bulk coils

description

Details

Flexible crystal clear, high tensile textile reinforced, PVC hose with transparent blue tint. Smooth interior to avoid sentiment build-up.

Potential Use

  • Water lines
  • Pneumatic lines
  • Air breathing
  • Beverages and potable water
  • Agricultural feed
  • Sanitary products
  • Non-fatty and non-oily foods
  • OEM equipment plumbing
  • Machine tool connections

Features

  • Non-marking
  • Clear tube and cover
  • Ozone resistant
  • Lightweight
  • One piece lengths
  • Excellent abrasion resistance
  • Excellent physical strength
  • FDA and NSF/ANSI 51 compliant

Product Specifications

Additional Information

Tube Material Specially Formulated clear PVC
Reinforcement High Tensile Strength Textile Cord
Cover Material Specially formulated clear PVC
Standard Colors Transparent Clear
Temperature Range -20◦ (-4 C) to 150◦ F (65◦ C)
Fittings Available Special Order
Phthalate Free Yes
RoHS Compliant Yes
Certification FDA Compliant, NSF/ANSI 51 Listed Materials
Standard Size(s) 1/4in - 1in
Working Pressure 150-300 psi
Safety Factor 3:1
Standard Length(s) 50, 100 ft coils and 300 ft bulk
Weight per foot Varies by size and length
Assembled Special Order

Item Details

SKU
HCL-0250F-00
HCL-0375F-00
HCL-0500F-00
HCL-0625F-00
HCL-0750F-00
HCL-1000F-00
Standard Size(s) O.D. Working Pressure Safety Factor Standard Length(s) Bend Radius (in) Weight (Lbs) Stocked Assembled
1/4in 0.500in 300 psi 3:1 50, 100 ft coils and 300 ft bulk 0.63in 0.08 Yes Special Order
3/8in 0.595in 300 psi 3:1 50, 100 ft coils and 300 ft bulk 1in 0.09 Yes Special Order
1/2in 0.750in 300 psi 3:1 50, 100 ft coils and 300 ft bulk 1.5in 0.136 Yes Special Order
5/8in 0.895in 200 psi 3:1 50, 100 ft coils and 300 ft bulk 2in 0.173 Yes Special Order
3/4in 1.045in 150 psi 3:1 50, 100 ft coils and 300 ft bulk 2.5in 0.217 Yes Special Order
1in 1.315in 150 psi 3:1 50, 100 ft coils and 300 ft bulk 3.5in 0.293 Yes Special Order

Downloads

Product Downloads

Product Downloads

Literature
pdf Clear Hose 2018 (Size: 667.8 KB)
