LP Gas Low Pressure Hose

  • LP Gas Low Pressure Hose

LP Gas Low Pressure Hose

Item # Product Name
H-HB-4 1/4in LPG Hose Low Pressure
H-HB-5 5/16in LPG Hose Low Pressure
H-HB-6 3/8in LPG Hose Low Pressure

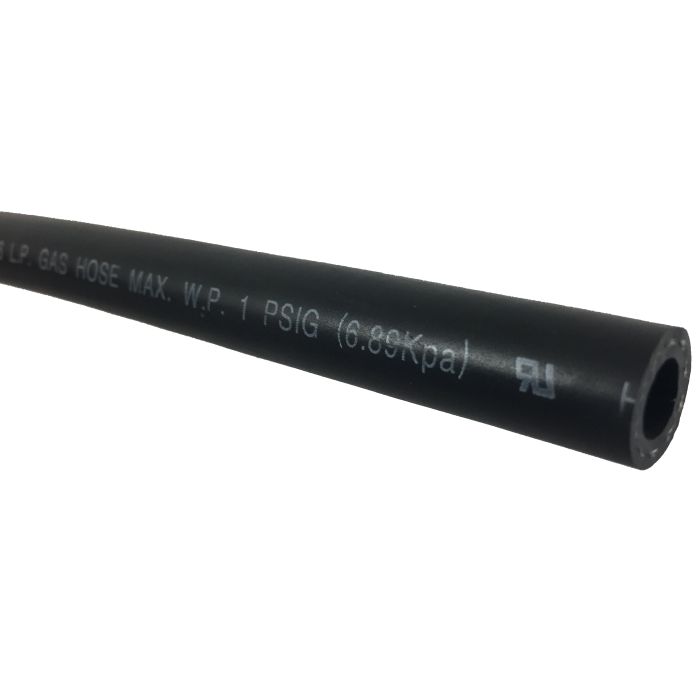

The Flex-Tech H-HB Series low pressure LP gas hose incorporates our proprietary PVC/rubber blended compound and is available in bulk, finished assemblies and cut-lengths. It’s suitable where pressures below 1 PSGI are required. Our bulk hoses meet and exceed industry standards and are ANSI/UL 569 Recognized. We offer hundreds of hose assembly combinations that can be found in applications worldwide.


Applications: For the transfer of propane gas in low pressure connections including outdoor gas grills, camp stoves, smokers and more.


OEM Benefits


Our H-HB series is an economic alternative to using a high-pressure hose without compromising quality, reliability or safety. Our in-house extrusion capabilities allow us to design a hose product that will fit your specific requirements. This hose is manufactured in the USA from premium grade domestic materials and every coil is 100% pressure tested.


You can learn more about the product below. Contact our sales team to discuss your specific needs so we may partner with you for the perfect solution.

description

Details

Flex-Tech LP Gas (H-HB Series) Hose for Heating, RVs and outdoor cooking appliances. Largest Domestic manufacturer of thermoplastic LPG Hose. Available in bulk, finished LPG assemblies, or cut-lengths, high- or low-pressure LPG applications. UL 569 Recognized component.

Potential Use

  • Outdoor Gas Grills
  • Camping Appliances
  • Smokers
  • Low Pressure Connections

Features

  • UV/Ozone resistant cover
  • Indented print sequence
  • Non-marking
  • Lighter weight and more economical than rubber hoses
  • Excellent abrasion resistance
  • Good low temperature performance
  • Low permeation
  • Good low temperature performance
  • Made to order custom length assemblies with industry standard fitting combinations

Product Specifications

Additional Information

Tube Material Proprietary PVC/Rubber blended compound
Reinforcement High tensile strength textile yarn
Cover Material UV & Ozone resistant compound
Standard Colors Black
Temperature Range -40◦ F (-40◦ C) to 140◦ F (60◦ C)
Fittings Available Various fittings available
Phthalate Free No
RoHS Compliant Yes
Certification UL 569
Standard Size(s) 1/4 in, 5/16 in, 3/8 in
Working Pressure 1 PSIG
Safety Factor Minimum burst pressure of 500 PSIG
Standard Length(s) 300 ft - 500 ft
Weight per foot Varies by size and length
Assembled Yes

Item Details

SKU
H-HB-4
H-HB-5
H-HB-6
Standard Size(s) O.D. Working Pressure Safety Factor Standard Length(s) Bend Radius (in) Weight (Lbs) Stocked Assembled
1/4in 0.495in 1 psi 500 psi min. 500 ft 2in 0.083 Yes Special Order
5/16in 0.560in 1 psi 500 psi min. 500 ft 2in 0.098 Yes Special Order
3/8in 0.650in 1 psi 500 psi min. 500 ft 3in 0.131 Yes Special Order

Downloads

This product does not have any manuals or documents at this time.
