RT Multi-Purpose Bulk Hose

  • RT Multi-Purpose Bulk Hose

RT Multi-Purpose Bulk Hose

Item # Product Name
RT-0250XX-RL 1/4in Multi-Purpose Hose
RT-0375XX-RL 3/8in Multi Purpose Hose
RT-0500XX-RL 1/2in Multi-Purpose Hose
RT-0625XX-RL 5/8in Multi-Purpose Hose
RT-0750XX-RL 3/4in Multi-Purpose Hose
RT-1000XX-RL 1in Multi-Purpose Hose

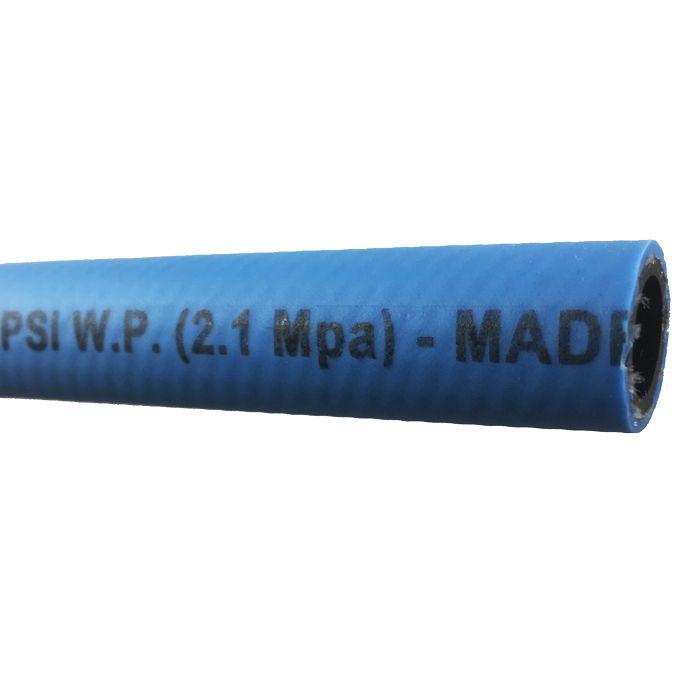

The Flex-Tech RT Series hose looks and performs like rubber but is specially formulated from our thermoplastic blend for a fraction of the cost. The hose is reinforced with high tensile strength textile cord and covered with a specially formulated PVC compound that comes in five colors.


The RT series can be purchased in bulk, cut lengths and finished assemblies – ART for multipurpose assemblies and ARTW for water hose assemblies.


Applications: For the transfer of air or water in pneumatic tools, coolant lines, irrigation supply lines, painting equipment/booths, and more.


OEM Benefits


Customers choose our RT Series multi-purpose hose for its flexibility, durability and price point. It is lightweight, silicone free and UV and Ozone resistant. Our in-house extrusion capabilities allow us to design a multi-purpose hose product or assembly that will fit your specific requirements. This hose is manufactured in the USA from premium grade domestic materials.


You can learn more about the product below. Contact our sales team to discuss your specific needs so we may partner with you for the perfect solution.


*For color replace "xx" with "BK" = black, "BL" = blue, "RD" = red, "YW" = yellow, "GR" = green

description

Details

The RT Series hose is a premium multi-purpose product for use in a variety of applications. The specially formulated thermoplastic provides a rubber-like look and feel at a fraction of the cost.

Potential Use

  • Heavy-duty commercial & construction use
  • Mulitipurpose applications
  • Air & water (up to 150°F)
  • Pnuematic tools in cabinet or mechanic shops
  • Air service for painting equipment/booths
  • Color coded coolant lines
  • General water service in industrial plants
  • Municipal maintenance and park departments
  • Irrigation supply lines
  • Farm and ranch maintenance

Features

  • UV & Ozone Resistant
  • Non-Marking Cover
  • Lightweight
  • Long continuous lengths
  • Silicone free tube & cover
  • Superior chemical resistance of PVC
  • Meets RMA (Class B) oil resistance
  • See ART for multipurpose assembles, ARTW for water hose assembles

Product Specifications

Additional Information

Tube Material Specially Formulated PVC Compound
Reinforcement High Tensile Strength Textile Cord
Cover Material Specially Formulated, Rubberized, PVC Blend
Standard Colors Red, Yellow, Blue
Temperature Range -15◦ F (-26◦ C) to 150◦ F (65◦ C)
Fittings Available Not applicable
Phthalate Free Yes
RoHS Compliant Yes
Certification
Standard Size(s) 1/4in - 1in
Working Pressure 200-300 psi
Safety Factor 3:1 or 4:1 depending on size
Standard Length(s) 300 ft - 600 ft
Weight per foot Varies by size and length
Assembled See ART for Assemblies

Item Details

SKU
RT-0250XX-RL
RT-0375XX-RL
RT-0500XX-RL
RT-0625XX-RL
RT-0750XX-RL
RT-1000XX-RL
Standard Size(s) O.D. Working Pressure Safety Factor Standard Length(s) Bend Radius (in) Weight (Lbs) Stocked Assembled
1/4in 0.500in 300 psi 4:1 500ft, other options upon request 0.63in 0.087 See table below or check individual product page See ART for Assemblies
3/8in 0.595in 300 psi 4:1 500ft, other options upon request 1in 0.098 See table below or check individual product page See ART for Assemblies
1/2in 0.750in 300 psi 3:1 500ft, other options upon request 1.5in 0.15 See table below or check individual product page See ART for Assemblies
5/8in 0.890in 300 psi 3:1 500ft, other options upon request 2in 0.187 See table below or check individual product page See ART for Assemblies
3/4in 1.090in 300 psi 3:1 600ft, other options upon request 2.5in 0.29 See table below or check individual product page See ART for Assemblies
1in 1.400in 200 psi 3:1 400ft, other options upon request 3.5in 0.43 See table below or check individual product page See ART for Assemblies

Downloads

Product Downloads
