description

Details

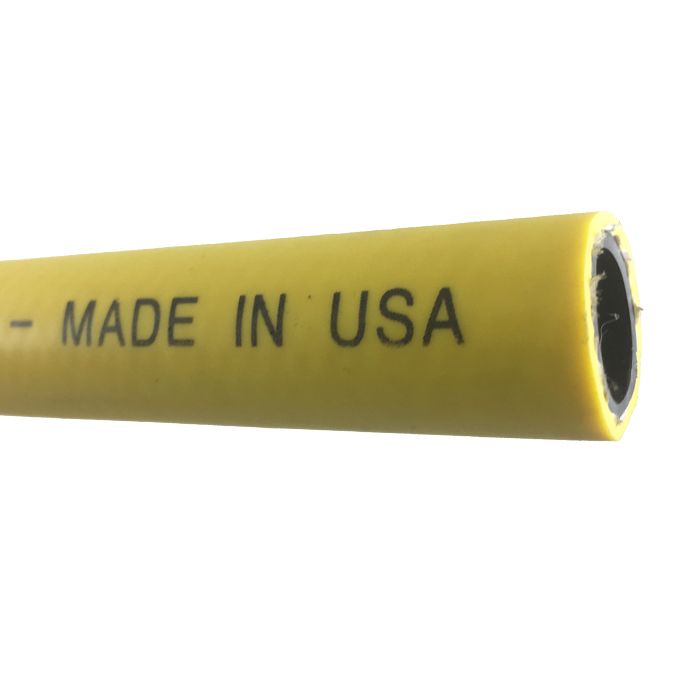

The RTW Series hose is a premium multi-purpose product for use in a variety of water supply and transfer applications. The specially formulated thermoplastic provides a rubber-like look, feel and long lasting durability at a fraction of the weight and cost.

Potential Use

• Heavy-duty Commercial and Construction Use
• General Water Service in Industrial Plants
• Municipal Maintenance and Park Departments
• Irrigation Supply Lines
• Heavy-duty Wash-down
• Fram/Ranch Maintenance

Features

• RMA Class B Oil Resistance
• Rubberized Thermoplastic for enhanced flexibility
• Exceptional Abrasion Resistant Cover
• Excellent Resistance to Weather and Aging
• Available on reels or bulk coils
• Water hose assemblies available under ARTW
• Outstanding value

Product Specifications

Additional Information

Tube Material	Specially Formulated PVC Compound
Reinforcement	Synthetic high tensile strength cord
Cover Material	Specially Formulated, Rubberized, PVC Blend
Standard Colors	Red, Green, Black
Temperature Range	15◦ F (1.7◦ C) to 150◦ F (65◦ C)
Fittings Available	Not applicable
Phthalate Free	No
RoHS Compliant	Yes
Certification
Standard Size(s)	5/8" & 3/4"
Working Pressure	175 psi
Safety Factor	3:1
Standard Length(s)	500 ft - 600 ft Reels
Weight per foot	Varies by size and length
Assembled	See ARTW for Assemblies

Item Details

SKU
RTW-0625xx-RL
RTW-0750xx-RL

Standard Size(s)	O.D.	Working Pressure	Safety Factor	Standard Length(s)	Bend Radius (in)	Weight (Lbs)	Stocked	Assembled
5/8in	0.855in	175 psi	3:1	12, 25, 50, 75, 100 ft coils	3in	0.16	Yes	See ARTW for Assemblies
3/4in	1.015in	175 psi	3:1	25, 50, 75, 100 ft coils	3.5in	0.215	Yes	See ARTW for Assemblies

Downloads

Product Downloads

Product Downloads

Literature RTW Hose 2018 (Size: 683.9 KB)
