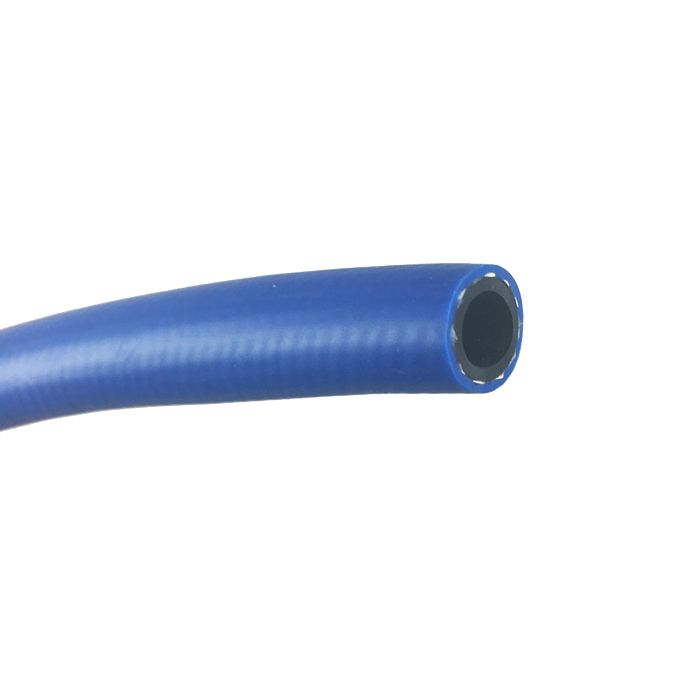

1/4in Bulk FLEX-PRO Hybrid Air
- 300 PSI working pressure
- Meets RMA (Class B) oil resistance
- Available in bulk reels or coils, cut lengths and finished assemblies
The FLEX-PRO Hybrid Air Hose features a tube and cover made from Thermoplastic rubber (TPR) which gives it the flexibility and durability of rubber along with the lightweight properties many customers request. The hose is reinforced with high tensile strength textile cord and offers excellent resistance to weathering and aging. See our hybrid hose for finished assemblies.
You can learn more about the product below. Contact our sales team to discuss your specific needs so we may partner with you for the perfect solution.
*For color replace "xx" with BLD = dark blue, YW = yellow
$9,999.00
SKU
PHA-04XX-RL
Flex-Pro Hybrid Air Hose (PHA series) combines the flexibility and durability of
rubber with the lightweight and abrasion resistant properties of thermoplastic. It
resists kinking and remains flexible even in extremely cold weather
applications. Available in bulk reels or coils, finished hose assemblies, or cutlengths.
| Tube Material | Specially Formulated Hybrid TPR Compound |
|---|---|
| Reinforcement | Synthetic high tensile strength cord |
| Cover Material | Specially Formulated Hybrid TPR Compound |
| Standard Colors | Dark Blue and Yellow |
| Standard Size(s) | 1/4in |
| Standard Length(s) | 500 ft Reel |
| Temperature Range | neg 40◦F (-40◦C) to 150◦F (65◦C) |
| Working Pressure | 300 psi |
| Safety Factor | 4:1 |
| Assembled | See APHA for Assemblies |
| Fittings Available | See APHA |
| Phthalate Free | Yes |
| RoHS Compliant | Yes |
| Compare To | Kuri Tec HS1236, Coilhose Yellow Belly, Parker Artic Edge, Nexgen class 155 |
| Weight per foot | 0.087 |
