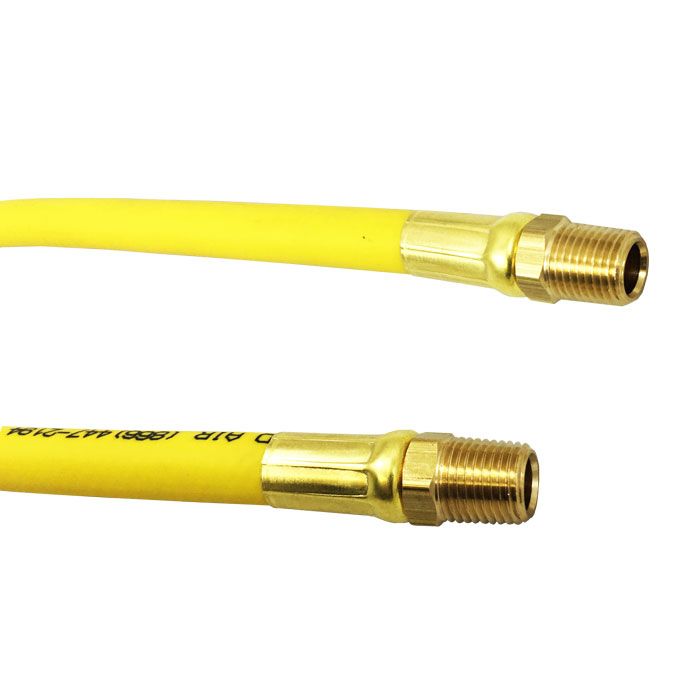

3/8in MxM Multi-Purpose Hybrid Hose Assemblies
- 300 PSI working pressure
- Meets RMA (Class B) oil resistance
- MNPT fittings available
Our custom air hose assemblies feature the FLEX-PRO Hybrid Air Hose, constructed of a lightweight and durable Thermoplastic Rubber (TPR) compound. Its lightweight properties make it an ideal alternative to rubber. The hose is reinforced with high tensile strength textile cord and offers excellent service in low temperature applications.
You can learn more about the product below. Contact our sales team to discuss your specific needs so we may partner with you for the perfect solution.
*For color replace "xx" with BLD = dark blue, YW = yellow
**For length replace "yy" with 25, 50, 100
$9,999.00
SKU
APHA06XXYYMM
Flex-Pro Hybrid Air Hose (PHA series) combines the flexibility and durability of rubber with the lightweight and abrasion resistant properties of thermoplastic. It resists kinking and remains flexible even in extremely cold weather applications. Available in bulk reels or coils, finished hose assemblies, or cut-lengths.
| Tube Material | Specially Formulated Hybrid TPR Compound |
|---|---|
| Reinforcement | Synthetic high tensile strength cord |
| Cover Material | Specially Formulated Hybrid TPR Compound |
| Standard Colors | Dark Blue and Yellow |
| Standard Size(s) | 3/8in |
| Standard Length(s) | 25, 50, 100 ft Coils |
| Temperature Range | neg 40◦F (-40◦C) to 150◦F (65◦C) |
| Working Pressure | 300 psi |
| Safety Factor | 4:1 |
| Assembled | Yes |
| Fittings Available | MNPT |
| Phthalate Free | Yes |
| RoHS Compliant | Yes |
| Compare To | Kuri Tec HS1236, Coilhose Yellow Belly, Parker Artic Edge, Nexgen class 155 |
| Weight per foot | 0.1 |
