1/4in Quick-Connect RT Multi-Purpose Assembly

1/4in Quick-Connect RT Multi-Purpose Assembly

3/8in Quick-Connect RT Multi-Purpose Assembly

3/8in Quick-Connect RT Multi-Purpose Assembly

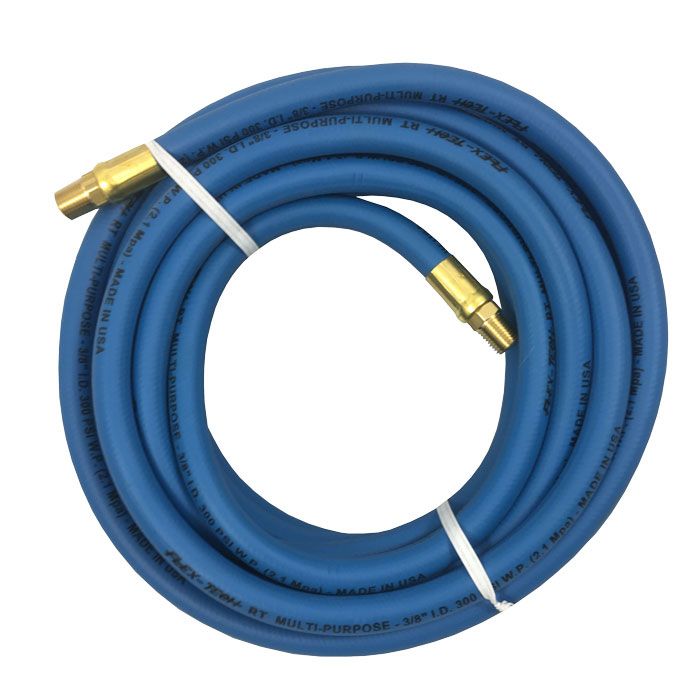

3/8in MxM RT Multi-Purpose Assembly

  • 300 PSI working pressure
  • Meets RMA (Class B) oil resistance
  • Lightweight, flexible, non-marking, and UV & Ozone resistant

Often used in custom applications, the ART Series is special­ly formulated from PVC compounds to provide excellent performance and outstanding value. It’s reinforced with a high tensile strength textile cord and design to perform like rubber. Our thermoplastic hose meets RMA (Class B) oil resistance, is compliant to RoHS and is Phthalate free.

You can learn more about the product below. Contact our sales team to discuss your specific needs so we may partner with you for the perfect solution.

*For color replace "xx" with "BK" = black, "BL" = blue, "RD" = red, "YW" = yellow, "GR" = green

*For length replace "yy" with 25, 50 or 100

$9,999.00
SKU
ART0375XXYYMM
The ART Series hose assemblies are a premium multi-purpose product for use in a variety of applications. The specially formulated thermoplastic provides a rubber-like look and feel at a fraction of the cost.
More Information
Tube MaterialSpecially Formulated PVC Compound
ReinforcementHigh Tensile Strength Textile Cord
Cover MaterialSpecially Formulated, Rubberized, PVC Blend
Standard ColorsRed, Yellow, Blue
Standard Size(s)3/8in
Standard Length(s)25, 50, 100 ft Coils
Temperature Range-15◦ F (-26◦ C) to 150◦ F (65◦ C)
Working Pressure300 psi
Safety Factor4:1
AssembledYes, up through 1/2"
Fittings AvailableMNPT
Phthalate FreeYes
RoHS CompliantYes
Weight per foot0.1
